Cooling capacity：25~119kW

Heating capacity：28~135kW

Air flow：5000~24500m³/h

ESP: 100~500Pa

1. Higher ESP to meet the requirement of large space application

2. Larger capacity design, single unit max. cooling capacity up to 119kW

3. Fan motor can customized with inverter to reduce the impact of starting current on the power grid

4. Can customized with higher grade filter

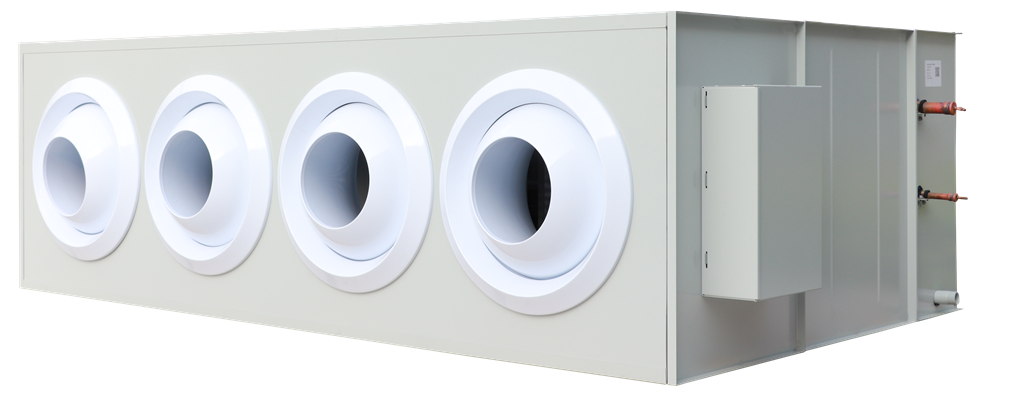

Model: EKSL050~140A1X

Cooling capacity: 45~119kW

Heating capacity: 32~96kW

Air flow：5000~14000m³/h

Air supply range: 15~30 meter

1. Standard with adjustable jet nozzle

2. All unit can do multi-connecting design

3. Without duct Max. air supply distance is 30 meter

4. Standard with nylon filter, can customized higher grade filter

Model: EKSL050~140A1

Cooling capacity：28~79kW

Heating capacity：31.5~88kW

Air flow：5000~14000m³/h

Air supply distance: 15~30 meter

1. Have back air return plenum & bottom air return plenum for option

2. Standard with adjustable jet nozzle

3. All unit can do multi-connecting design

4. Without duct Max. air supply distance is 30 meter

5. Standard with nylon filter, can customized higher grade filter

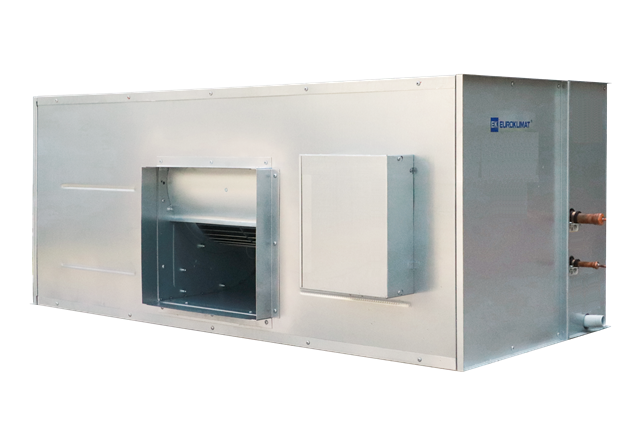

Model: Temperature control: EKDH140~790A1

             Temperature & RH control: EKDH140~790AH1

Cooling capacity：14.1~79kW

Heating capacity：16~88kW

Air flow：2700~15000m³/h

ESP: 100~300Pa

1. Including 2 type: temperature control, temperature & RH Control (Temperature control unit can do multi-connecting design)

2. ESP can be customized from 100 to 500Pa

3. Temperature & RH control unit only can one IDU coupling with one ODU

4. Standard with nylon filter, can customized higher grade filter
